Product Description

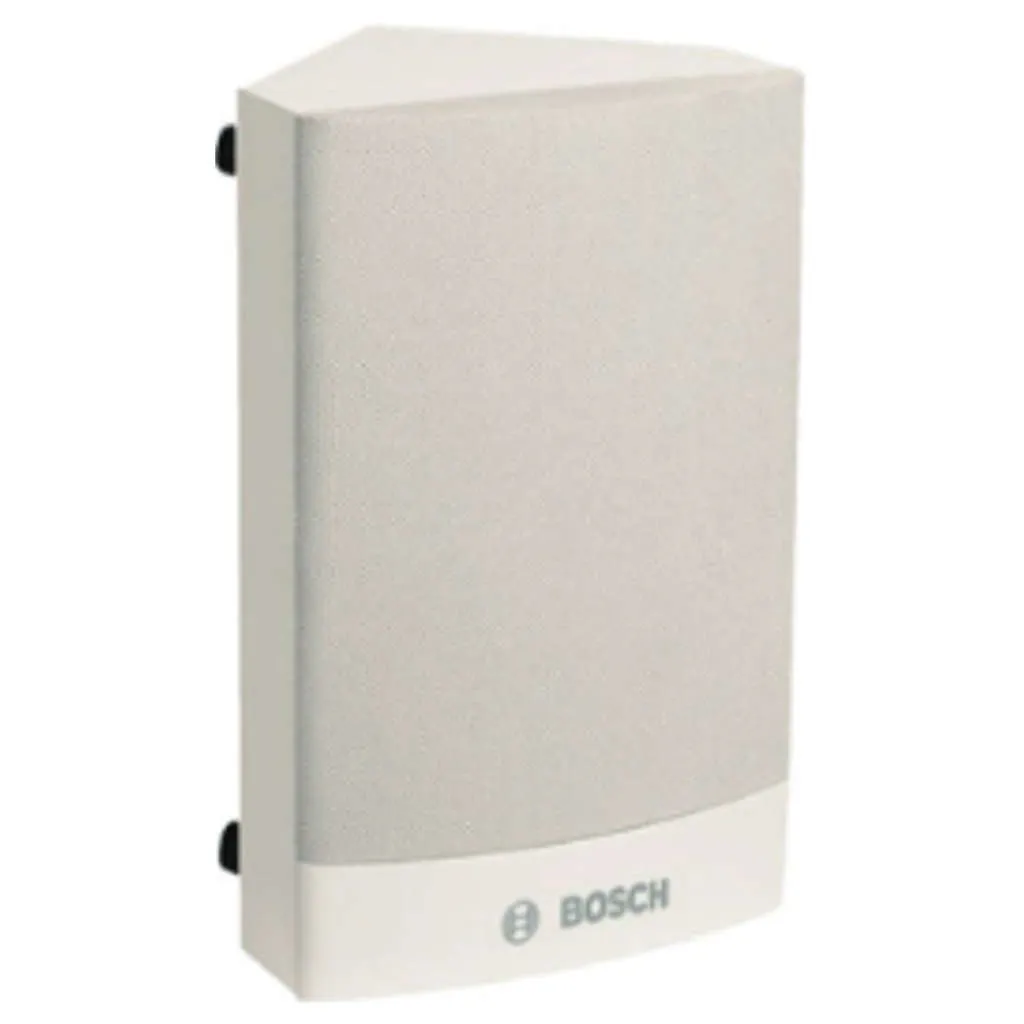

• The LBD3904-L are 6W,general-purpose cost-effective loudspeakers for indoor use

• Two brackets with keyholes,fixed on one side provide quick and easy mounting in corners between two walls,or between a wall and ceiling

• The loudspeakers are available in black or white

• Features

• Good speech intelligibility and background music reproduction

• Special shape for mounting in corners

• Available in black or white

• MDF construction

• Functions

• The robust,solid MDF (Medium Density Fiber board) enclosures are covered with a durable,easy-to-clean vinyl in white or black

• The ABS fronts are covered with fine woven cloth in matching color

• The cabinet shapes allow installation in corners between walls, and between wall and ceiling

• The loudspeaker has been tested for operation at rated power for 100 hours in accordance with IEC 268-5 Power Handling Capacity (PHC) standards

• Installation

• Two keyhole brackets at one side of the cabinet are provided for easy and quick wall mounting

• The other side of the cabinet is provided with two bushes for absorbing unwanted vibrations and secure mounting

• A convenient easy-to-use,4-pole push-in terminal block is present on the side for on-site wiring

• This terminal block has provision for power tapping on the 100-volt, matching transformer in the cabinet

• It allows selection of nominal full-power,half-power or quarter power radiation (in 3 dB steps)

Product Specification

Other Details
