Product Details
＋
This dedicated surround sound speaker is the ideal choice when uncompromising performance is demanded.
Listening is believing

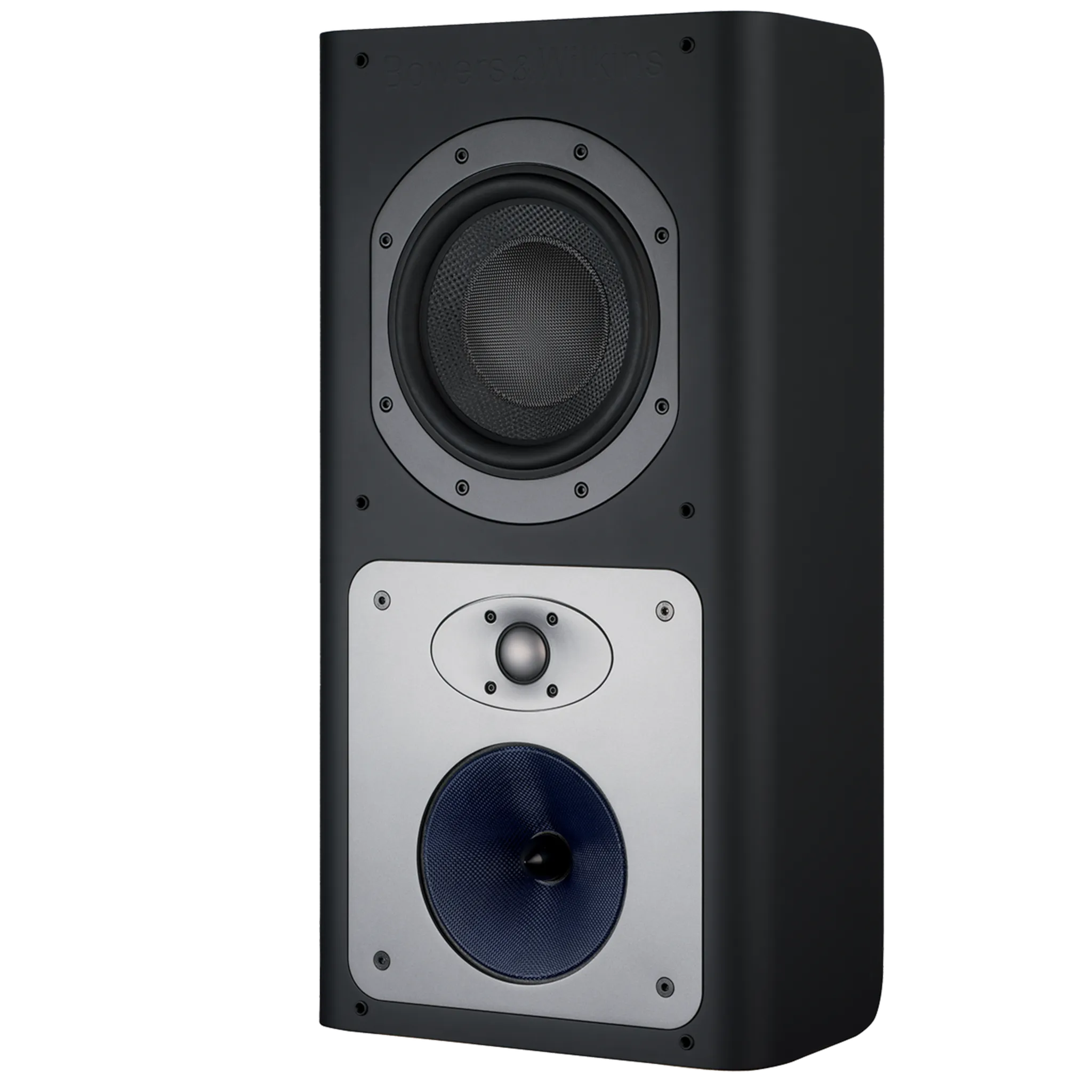

An addition to our top-of-the-range Custom Theatre 800 Series, which brings the same legendary technology used in B&W’s 800 Series of stand-alone speakers to your home theatre set-up. The CT8.4 LCRS is designed as an alternative to the CT8 DS side/rear channel speaker when space is at a premium: it’s a smaller, more compact vertical surround
sound speaker that generates exactly the same authentically three-dimensional listening experience. The CT8.4 LCRS also packs enough power to act as a stand-alone loudspeaker positioned front, side and rear within a complete custom theatre system.
Specifications:
| Technical features | Nautilus™ tube-loaded tweeter Aramid Fibre FST midrange cone Carbon fibre/Rohacell® bass unit cone Speakon® and binding post connectors |
| Description | 3-way closed-box system |
| Drive units | 1x ø32mm (1.2 in) tube loaded aluminium dome high-frequency 1 x ø150mm (6 in) woven Aramid Fibre FST™ mid-range 1 x 200mm (8 in) carbon fibre/Rohacell® sandwich cone bass |
| Frequency range | -6dB at 39Hz and 40kHz |
| Frequency response | 49Hz – 24kHz ±3dB on reference axis |
| Dispersion | Within 2dB of reference response Horizontal: over 60º arc Vertical: over 10º arc |
| Sensitivity | 88dB spl (2.83V, 1m) |
| Harmonic distortion | 2nd and 3rd harmonics (90dB, 1m) <1% 80Hz – 20kHz <0.5% 200Hz – 20kHz |
| Nominal impedance | 8Ω (minimum 3.0Ω) |
| Crossover frequency | 380Hz, 4kHz |
| Recommended amplifier power | 50W – 200W into 8Ω on unclipped programme |
| Max. recommended cable impedance | 0.1Ω |
| Dimensions | Height: 630mm (24.8 in) Width: 325mm (12.8 in) Depth: 185mm (7.3 in) Depth with grille: 227mm (9 in) |
| Net Weight | 21.0kg (46.3 lb) |
| Finishes | Cabinet Black painted |
