Product Details
＋

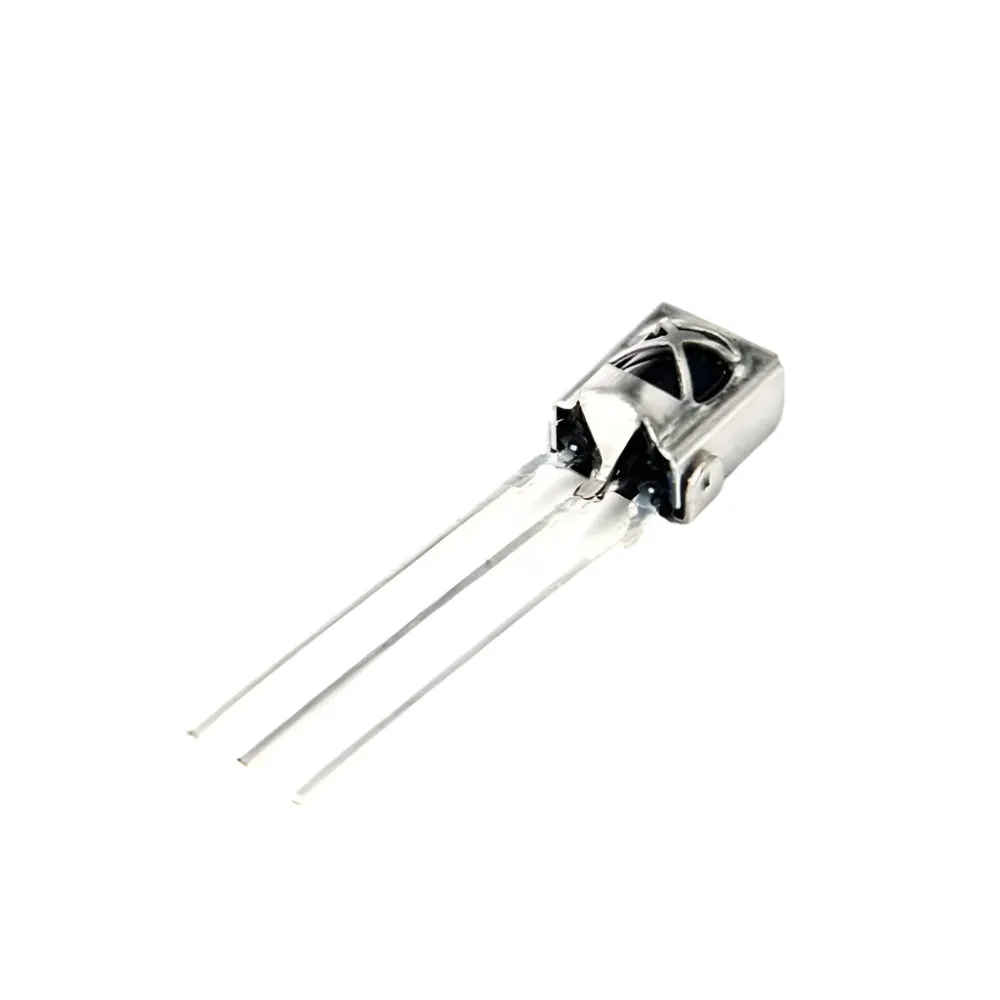

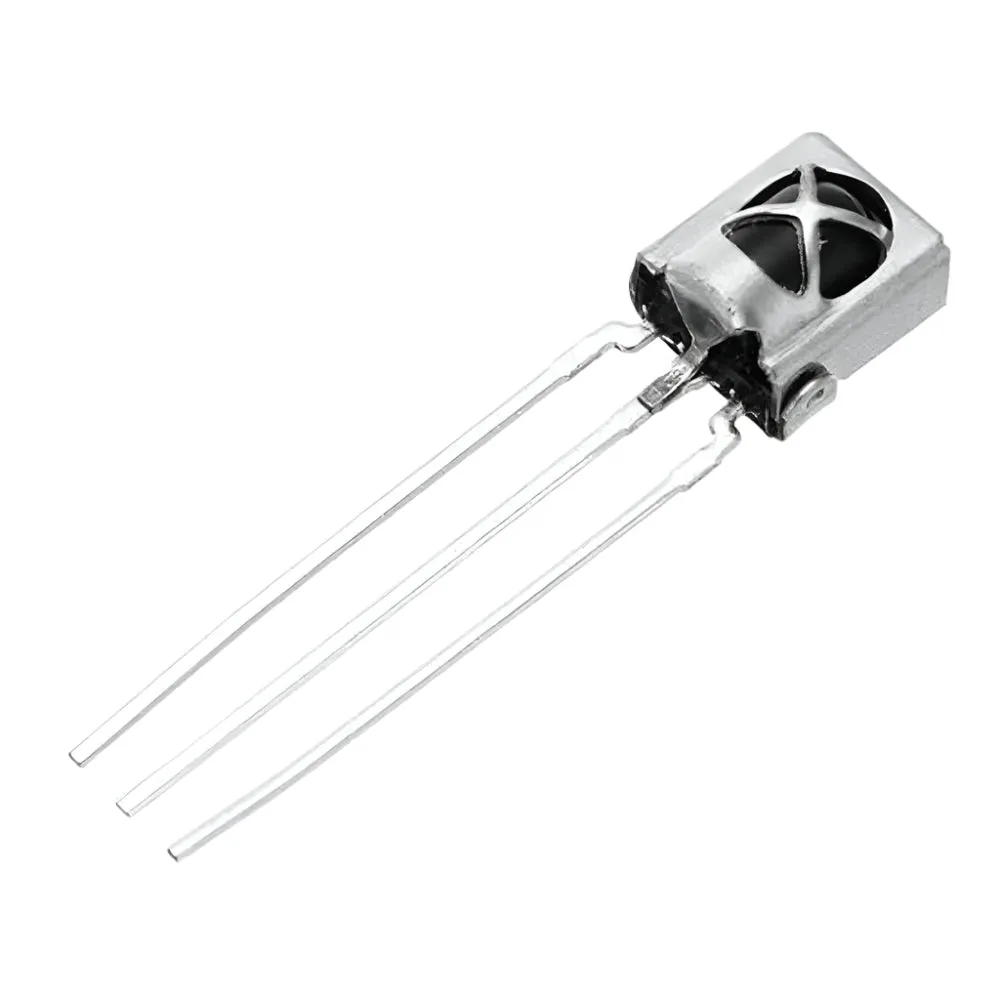

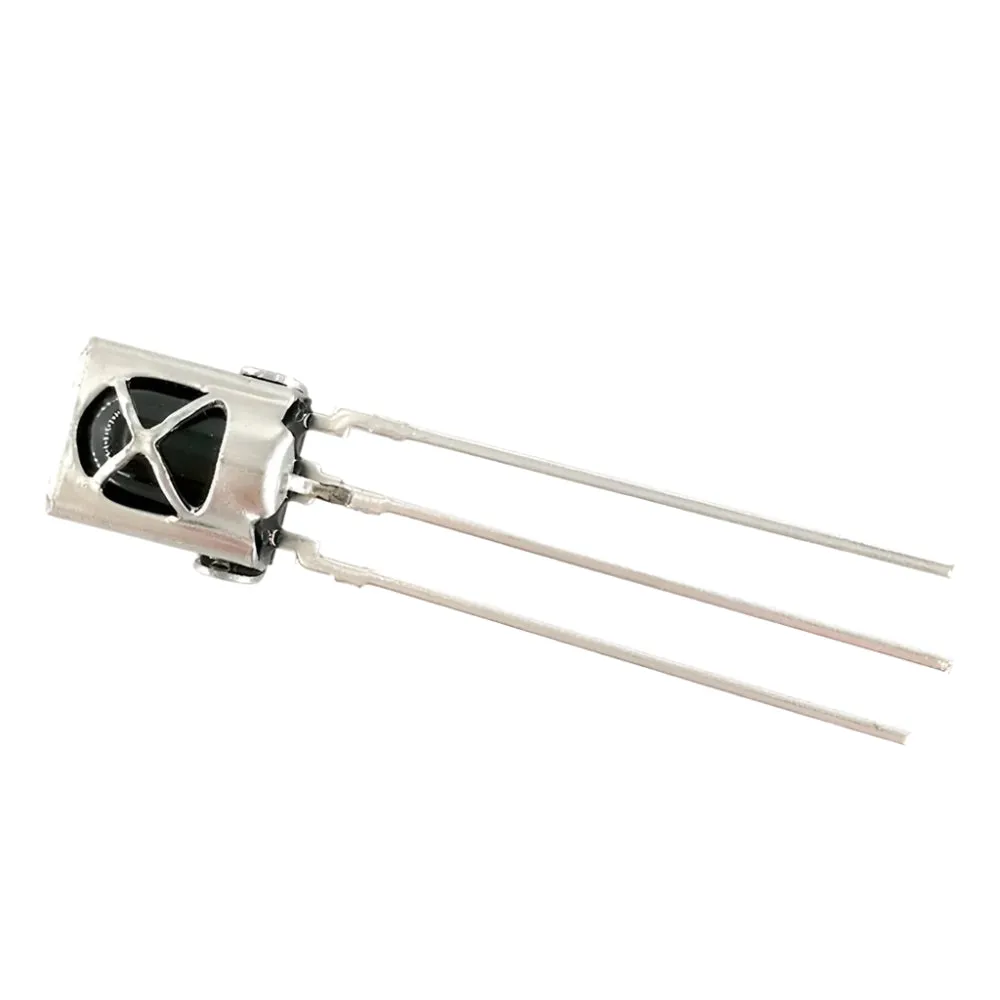

The VS1838B is an integrated infrared (IR) receiver module designed for remote control systems. It is widely used in consumer electronics for receiving and demodulating infrared signals from a remote control. The module integrates an infrared sensor and a demodulator, making it easy to interface with microcontrollers and other digital systems.
High Sensitivity: Capable of receiving signals over a long distance.
Low Power Consumption: Suitable for battery-operated devices.
Automatic Gain Control (AGC): Ensures stable reception under different lighting conditions.
Noise Suppression: Built-in noise suppression to prevent false triggering.
Compact Size: The small form factor makes it easy to integrate into various designs.
Standard Modulation Frequency: Usually operates at 38kHz, which is standard for most IR remote controls.
Home Automation: Integrated into systems for controlling lights, fans, and other appliances via IR remotes.
Key Features:
Wide Supply Voltage Range: Operates typically between 2.7V and 5.5V.High Sensitivity: Capable of receiving signals over a long distance.
Low Power Consumption: Suitable for battery-operated devices.
Automatic Gain Control (AGC): Ensures stable reception under different lighting conditions.
Noise Suppression: Built-in noise suppression to prevent false triggering.
Compact Size: The small form factor makes it easy to integrate into various designs.
Standard Modulation Frequency: Usually operates at 38kHz, which is standard for most IR remote controls.
Applications:
Consumer Electronics: Used in televisions, DVD players, set-top boxes, and home theater systems to receive commands from remote controls.Home Automation: Integrated into systems for controlling lights, fans, and other appliances via IR remotes.
Technical Detail
- Input Supply Voltage (VDC): 2.5 ~ 5.5
- Suitable Transmission Code : NEC code, RC5 code
- Universal Receiver: 38 KHz
Features
- Photodetector and preamplifier in one package.
- Internal filter for PCM frequency.
- Inner shield, good anti-interference ability.
- High immunity against ambient light.
- Improved shielding against electric field disturbance
- 3.0V or 5.0V supply voltage; low power consumption.
- TTL and CMOS compatibility.
- Suitable transmission code: NEC code, RC5 code.
- Universal receiver. 38 KHz
- Infrared receiver.
- Infrared remote control receiver.
- TL1838 VS1838B. 38khz.
Applications
- Optical switch
- The light-detecting portion of a remote control
- AV instruments such as Audio, TV, VCR, CD, MD, DVD, etc
- Home appliances such as air-conditioners, fans, etc.
- CATV set-top boxes
- Multi-media Equipment
Package Includes
- 1 x VS1838B Integrated Universal Infrared Receiver
