Product Details
＋

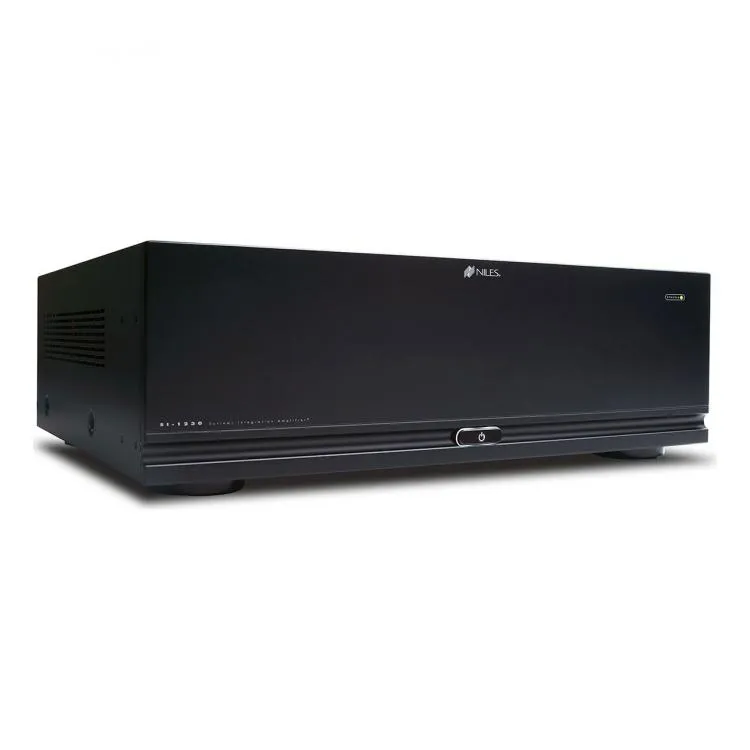

Niles Audio SI-1230 Series 2 Power Amplifier
12-Channel Fully Configurable Power Amplifier.
Special Order
For powering distributed audio systems.
Features at a Glance
- Fully configurable 12-Channel amplifier
- 30 watts RMS per channel into 8 Ohms (all channels driven)
- 40 watts RMS per channel into 4 Ohms (all channels driven)
- Adjacent channels are bridgable to 80 watts RMS into 8 Ohms (all channels driven)
- Switchable 110V-230V power supply
- Unique BusMatrix™ selector allows each channel to select from four options: left bus, right bus, left plus right bus (summed stereo), or INPUT level controls.
- Three turn-on modes: music sense, voltage trigger, and manual
- Audio circuitry constructed with the finest parts available, including 1% metal film resistors, high quality capacitors and oversized heat sinks for clear and uncolored sound
- Independent level controls for all 12 channels
- Status display for troubleshooting
Specifications
| General | |
| Dimensions | 17.25" (43.81cm) wide ° 5.75" (14.47cm) high (including feet) 16.25" (41.11cm) deep |
| Weight | 35 lb. (15.8 kg) |
| Shipping Info | |
| Length | 23.4 (Inches) |
| Width | 19.2 (Inches) |
| Height | 10.2 (Inches) |
| Weight | 42.25 (Lbs) |
| Unit of Measure | Each |
| UPC | 760514017047 |
| Master Pack Qty | 2 |
| Other Specifications | |
| Voltage trigger input accepts 3-24VAC/DC | |
| 12-volt control out | |
| Removable line cord | |
| Two year limited warranty | |
| Rack mount ears included | |
| Tested and certified to US, Canada, EU , and Australian safety and EMC standards | |
