Product Details
＋

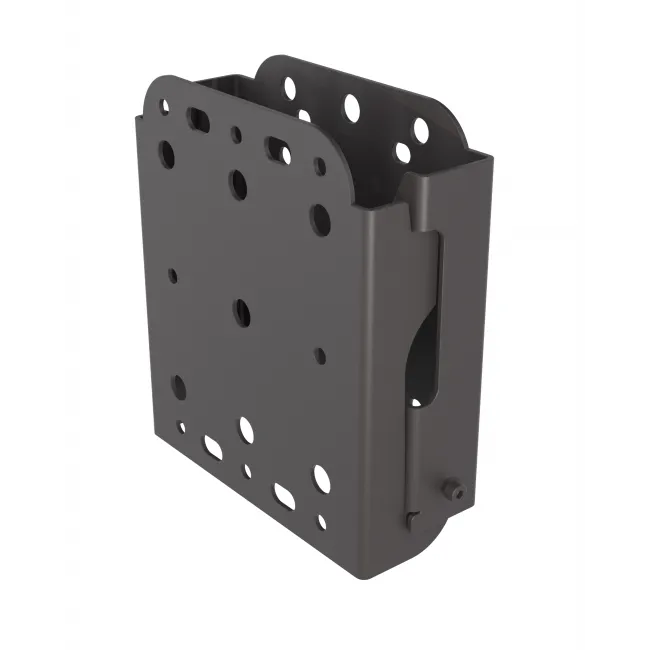

WMT-C50 is a compact indoor wall mount plate, accommodating speakers up to 45 kg.
All WMT-C50 adapter consist of two easily coupled parts for separate mounting to wall and speaker. WMT-C50 provides 50 mm (1,97”) distance from solid wall to cut through acoustic treatment.
The WMT-C50 allows to mount speakers with 5”x2,75” and 4,25”x2” hole patterns, as well as VESA 100x100 and VESA 75x75 patterns.
| Specifications | |
|---|---|
| Functions | Wall mounting adapter |
| Mounting holes | 4x dia 8,2 mm (dia 0.32”) (5” x 2,75” pattern); 4x dia 8,2 mm (dia 0.32”) (4,25” x 2” pattern); VESA 75x75; VESA 100x100 |
| Wall mounting plate | 145x149 mm |
| Load limit | 45 kg |
| Dimensions | 152 x 50 * x 150 mm |
| Compability | |
| Compatible JBL speakers | 9350, 9300, 9310, 9320 |
| Compatible QSC speakers | SR-800, SR-8101, SR-1000, SR-8200, SR-1020, SR-1030, SR-1290, SR-1590 |
| Compatible SLS speakers | CS1090, SC1290S-CM, SC-1290S |
| Compatible Alcons speakers | CCS8, CCS8S, CCS12 |
