Product Details
＋
Summary

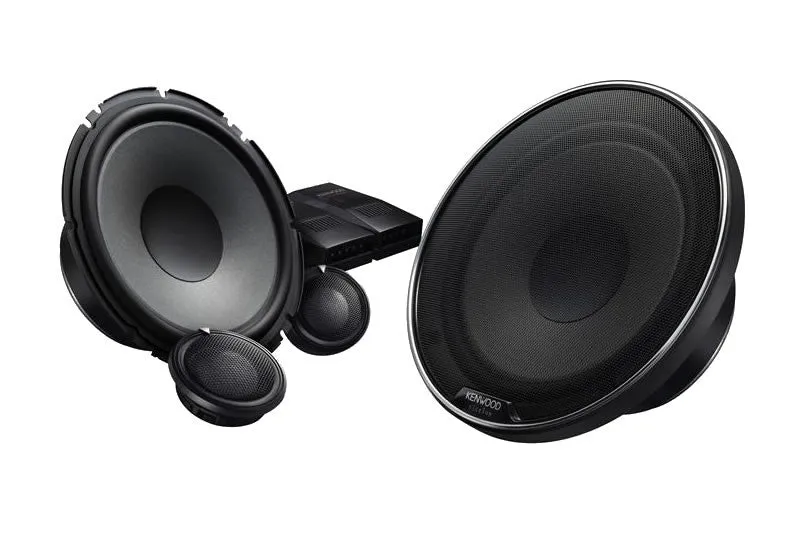

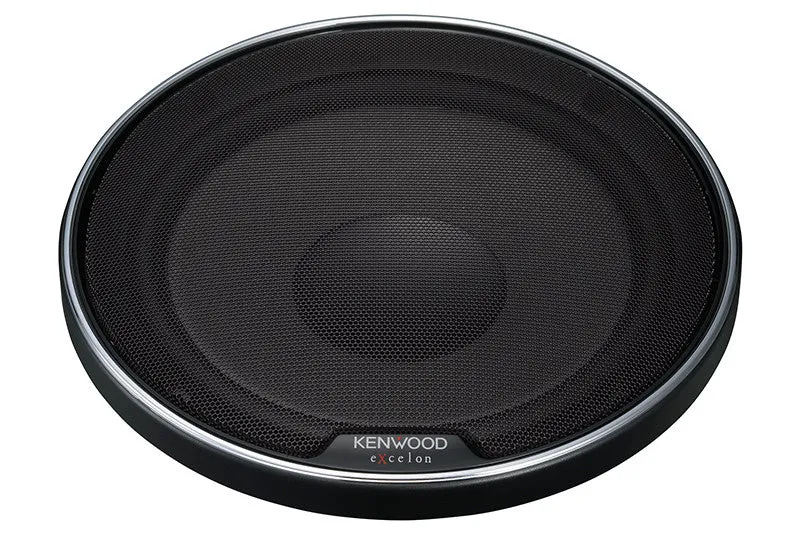

- 7" High Performance Component Speakers
- Hybrid Pulp Cone
- Soft Dome
- Includes Multi-Adaptor Plates
- Warranty: 2 years
Overview
The KENWOOD eXcelon Reference Series products set a new standard in audio excellence. They are constructed with state-of-the-art materials, designed to meet the needs of the most demanding music enthusiasts. We spend countless hours listening to and tuning these products, optimizing them for your vehicle listening experience. We back all eXcelon Reference products with a 2 Year Warranty.
General Features
-

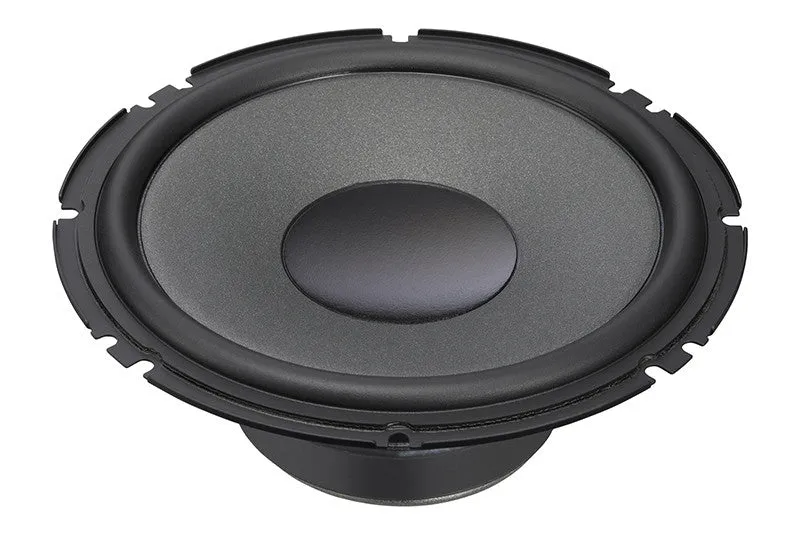

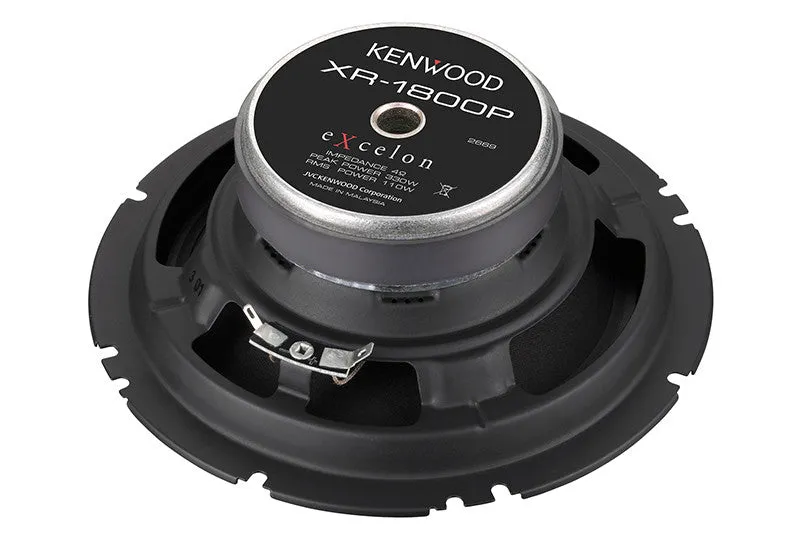

Woofer:
- Woofer Size: 7 in (180mm)
- Woofer Diaphragm: Advanced Hybrid Pulp
- Surround: Rubber
- Basket: Steel (Black)
- Magnet: Ferrite
-

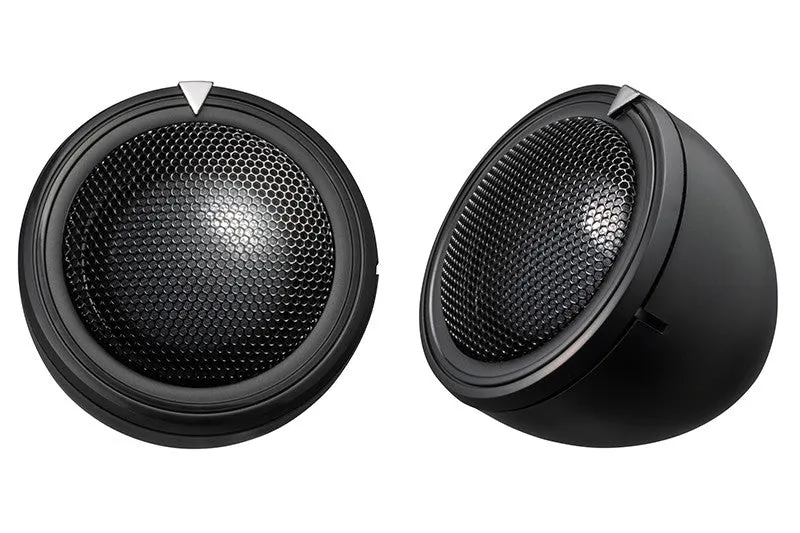

Tweeter:
- Tweeter Size: 13/16 in (20mm)
- Tweeter Diaphragm: Soft Dome
-
Dimensions (without grill):
- Width: 6-15/16 in (176)
- Height: 6-15/16 in (176mm)
- Depth: 2-3/4 in (69.5mm)
- Mounting Depth: 2-7/16 in (62mm)
- Warranty: 2-Year
Specifications
| Nominal Impedance | 4 Ω |
|---|---|
| Maximum Peak Power | 330 W |
| Rated Input Power (RMS) | 110 W |
| Sensitivity | 86 dB/W at 1m |
| Frequency Response | 57Hz - 20kHz |
| Crossover Frequency | - |
