Dymension CI™ PRO in-wall speakers deliver clear, consistent sound for both home and commercial applications, with features like pivoting tweeters, discreet design, and IP55-rated weather protection.

• 8.0" Mineral-Filled Woofer
• 1" Pivoting Aluminum Oxide Dome Tweeter
• Toolless Installation
• Flush, Border-Free Design

Iconic Definitive Sound

Signature acoustic technologies provide clear, consistent sound for home and commercial systems.

All-Weather Protection

Enjoy high-performance sound in any living space—indoors or out.

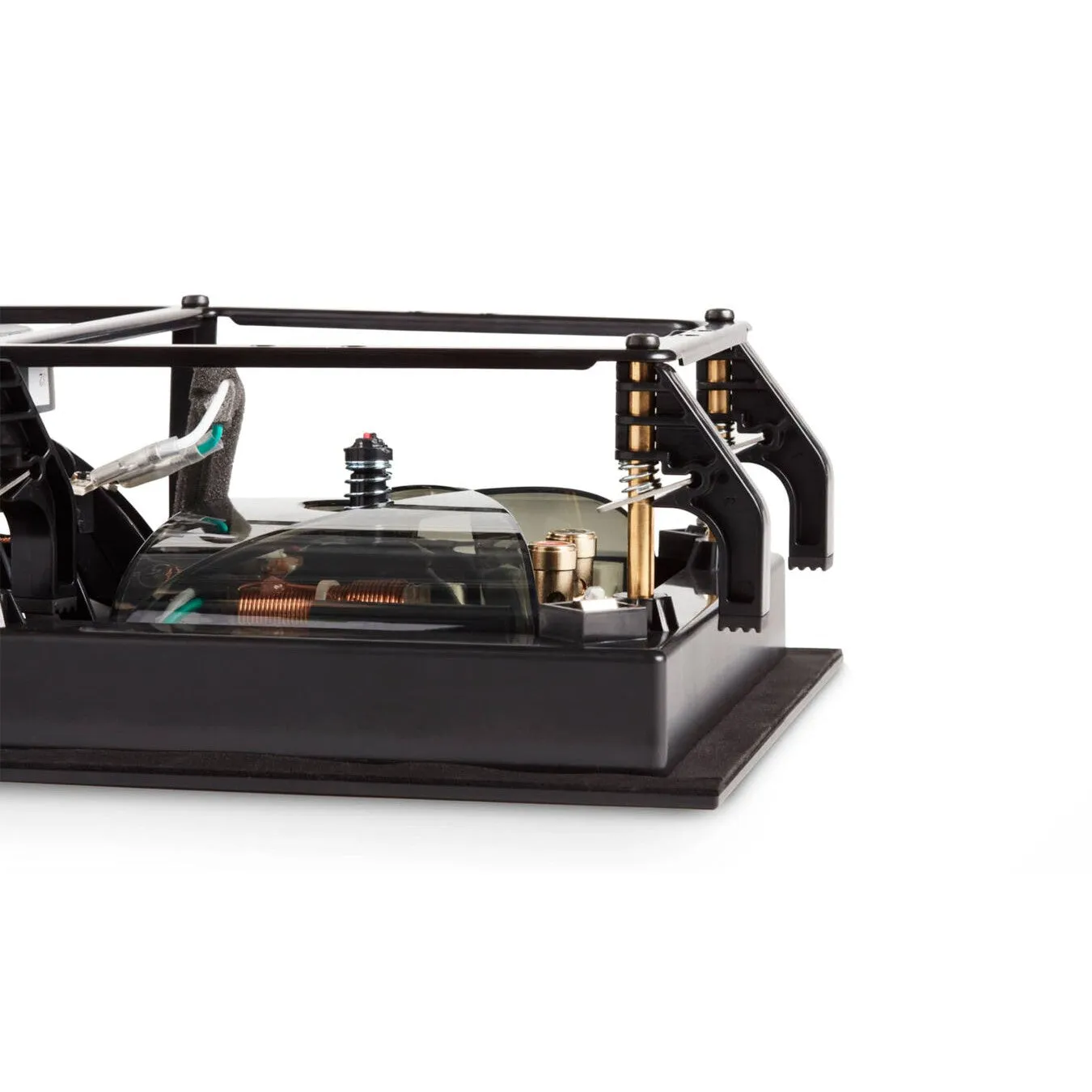

Simple, Toolless Installation for fast, easy installs

Install speakers in minutes using an innovative toolless mounting system. A simple, two-piece system with pivoting “dog” arms installs effortlessly—no tools, no hassles. Pre-construction brackets are available for all Dymension CI models.

Enjoy Superior Sound Anywhere

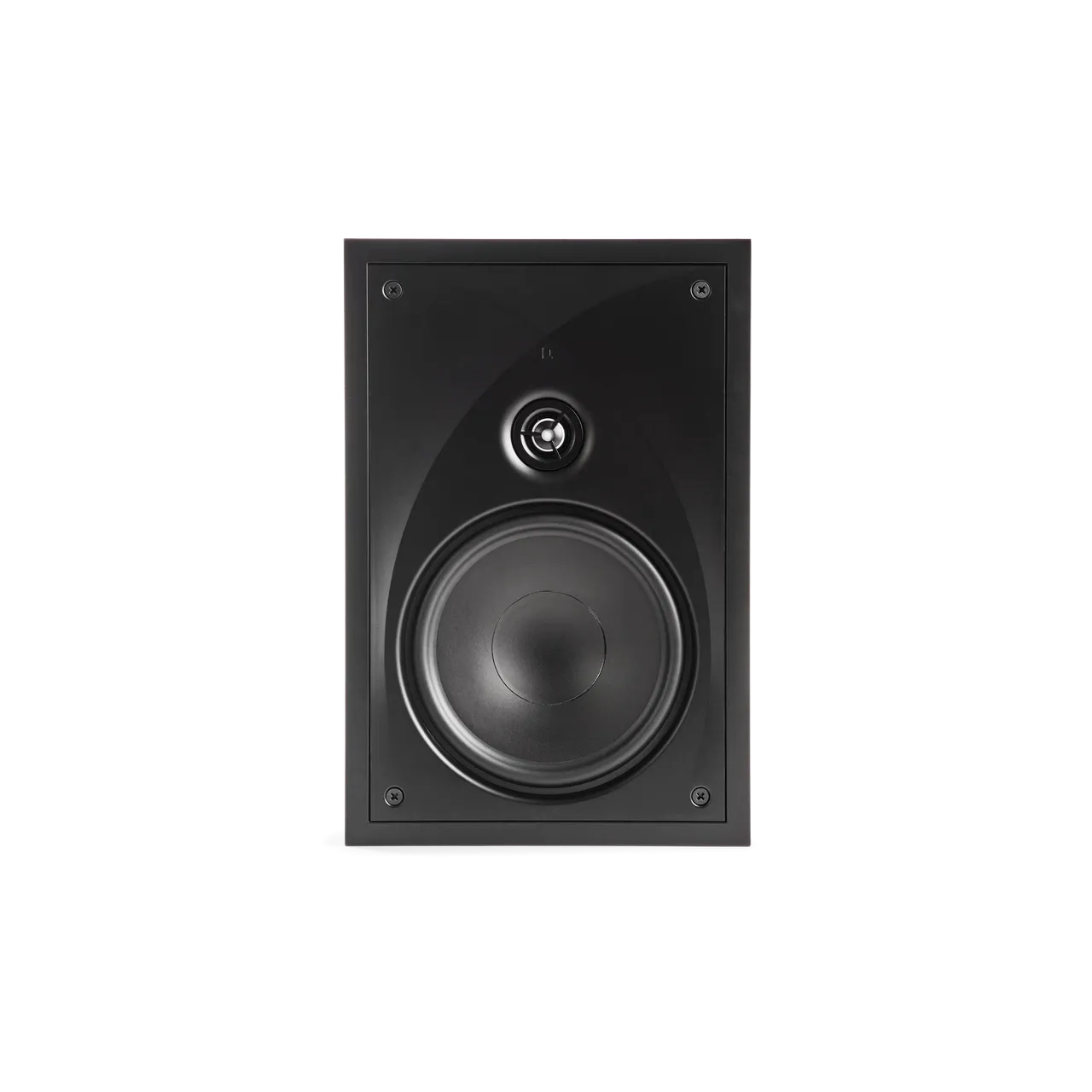

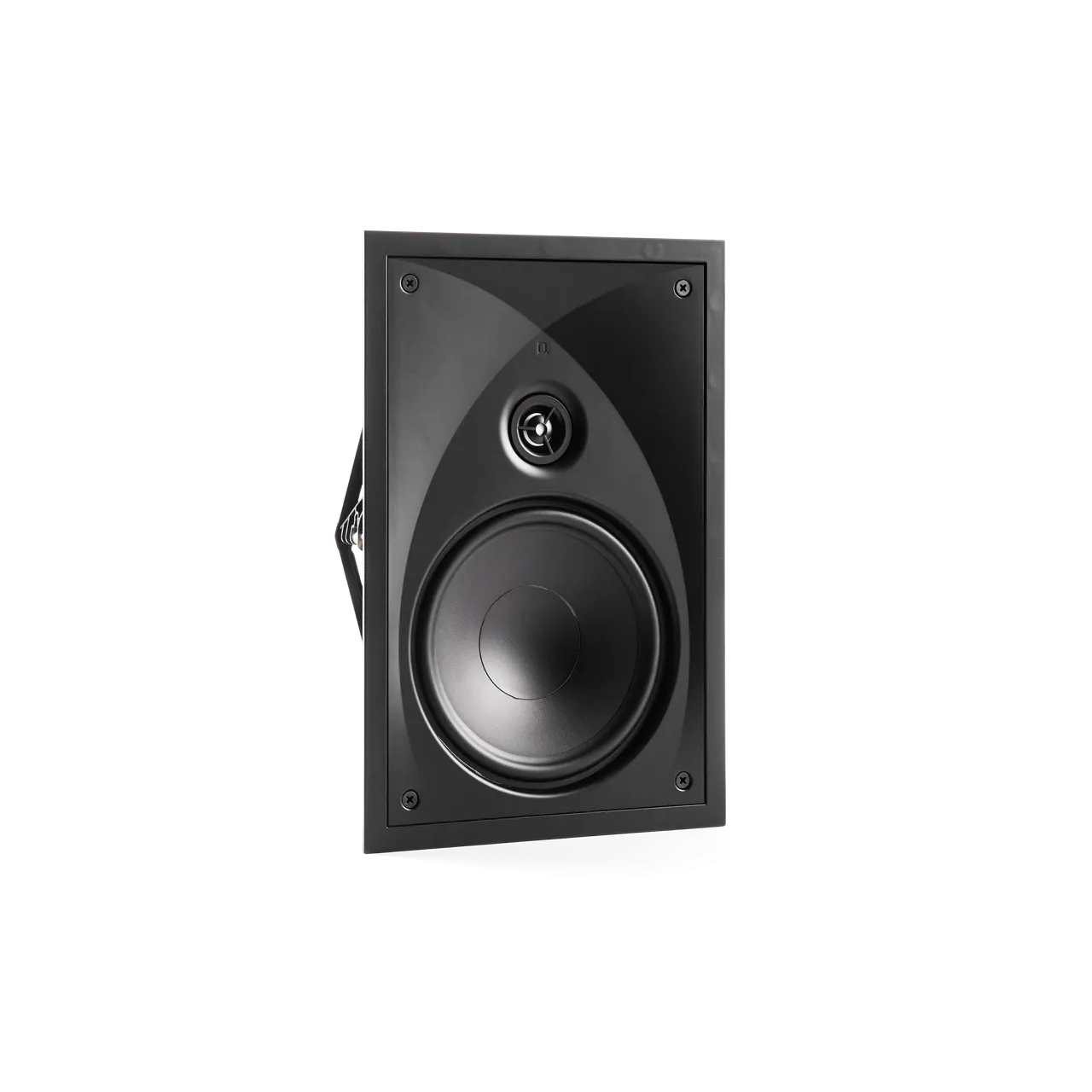

Pivoting Aluminium Oxide Dome Tweeter for Superior Imaging Everywhere in the Room

Aluminium oxide dome tweeter pivots to point crisp, clear sound anywhere, for lifelike sound with uncompromised clarity and imaging independent of speaker placement.

Mineral-Filled Woofer for Smooth, Natural Midrange

A light, rigid, mineral-filled 8" woofer, reproduces rich, clear music and movie soundtrack.

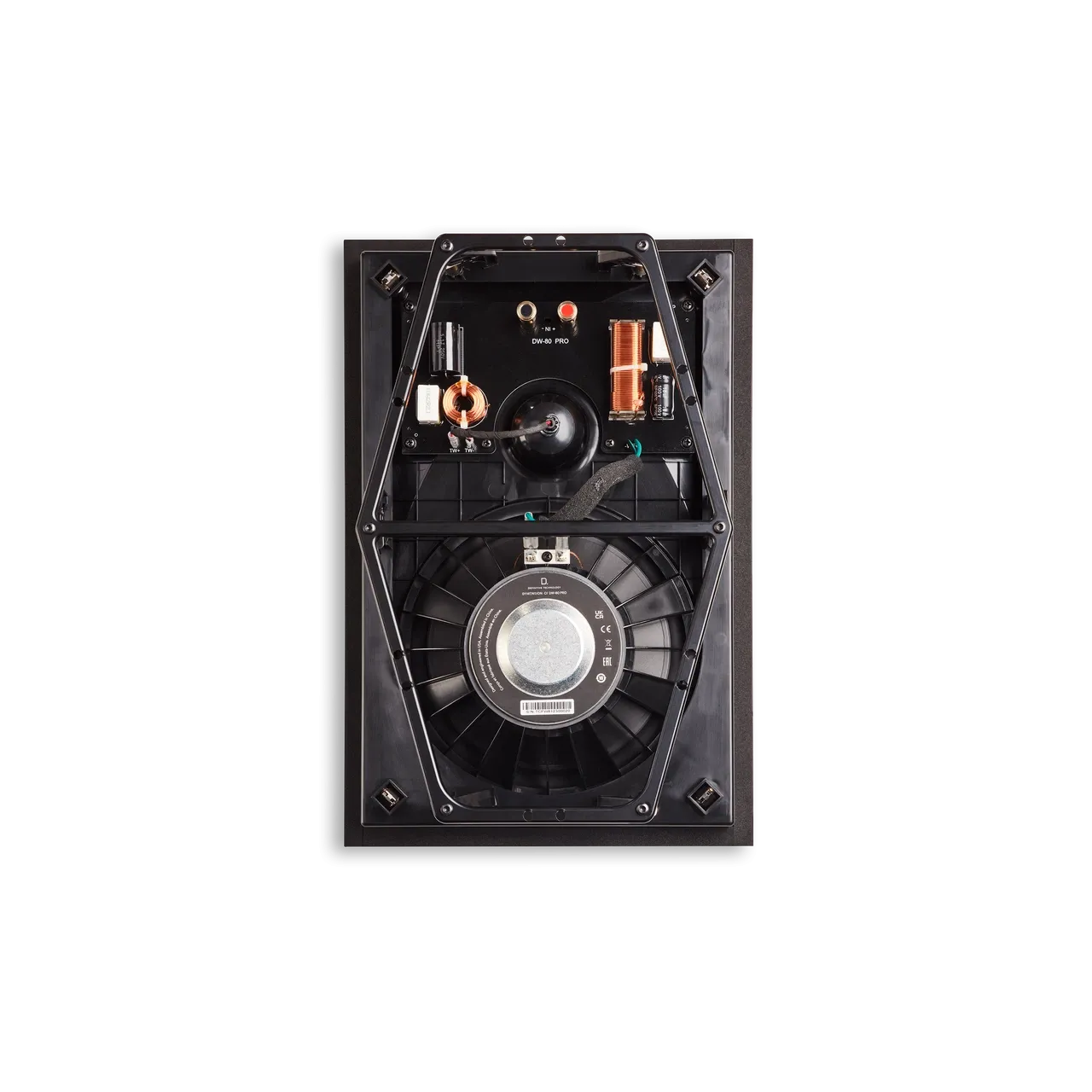

Sophisticated Crossover for Optimal Driver Performance

A premium crossover network ensures balanced voicing and smooth response.

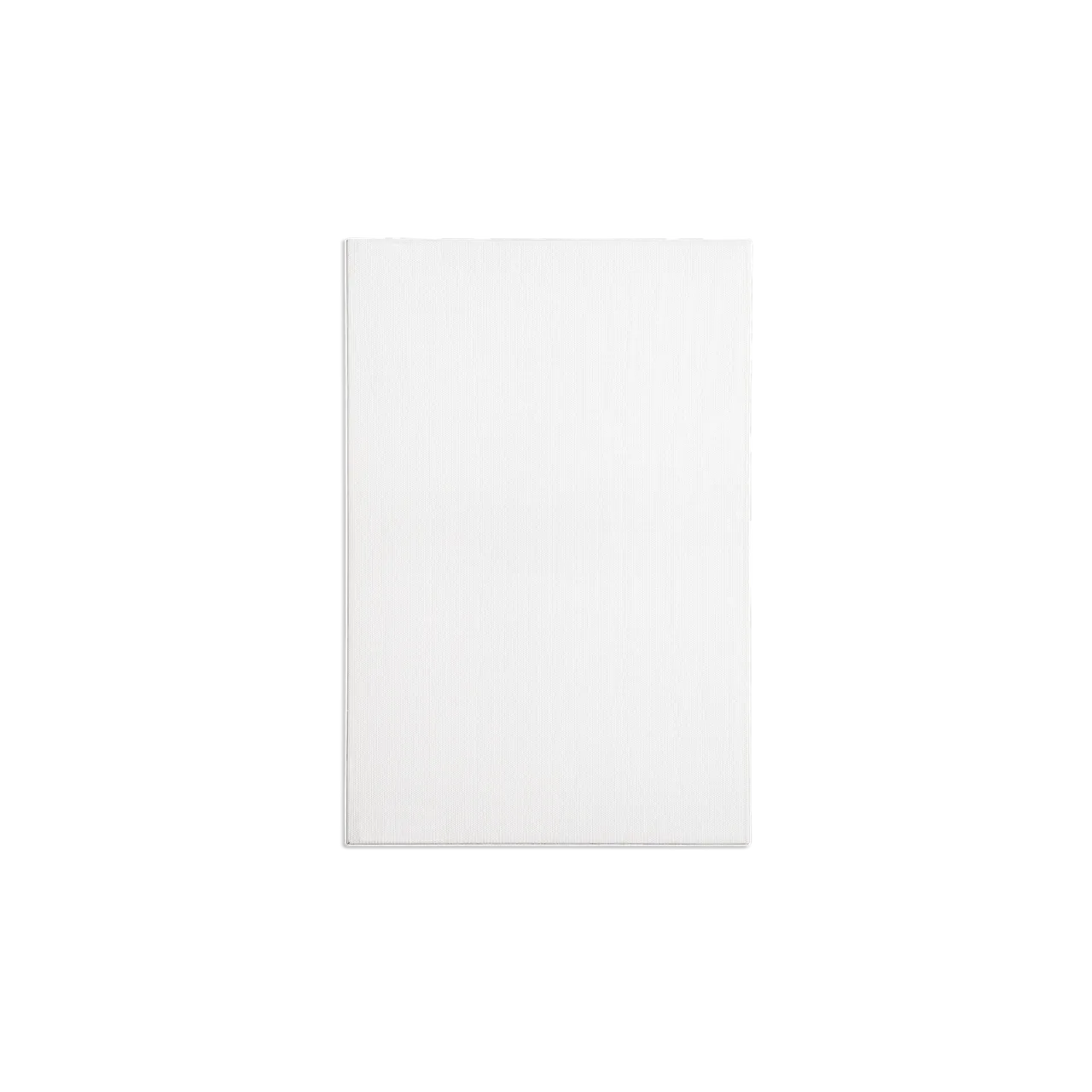

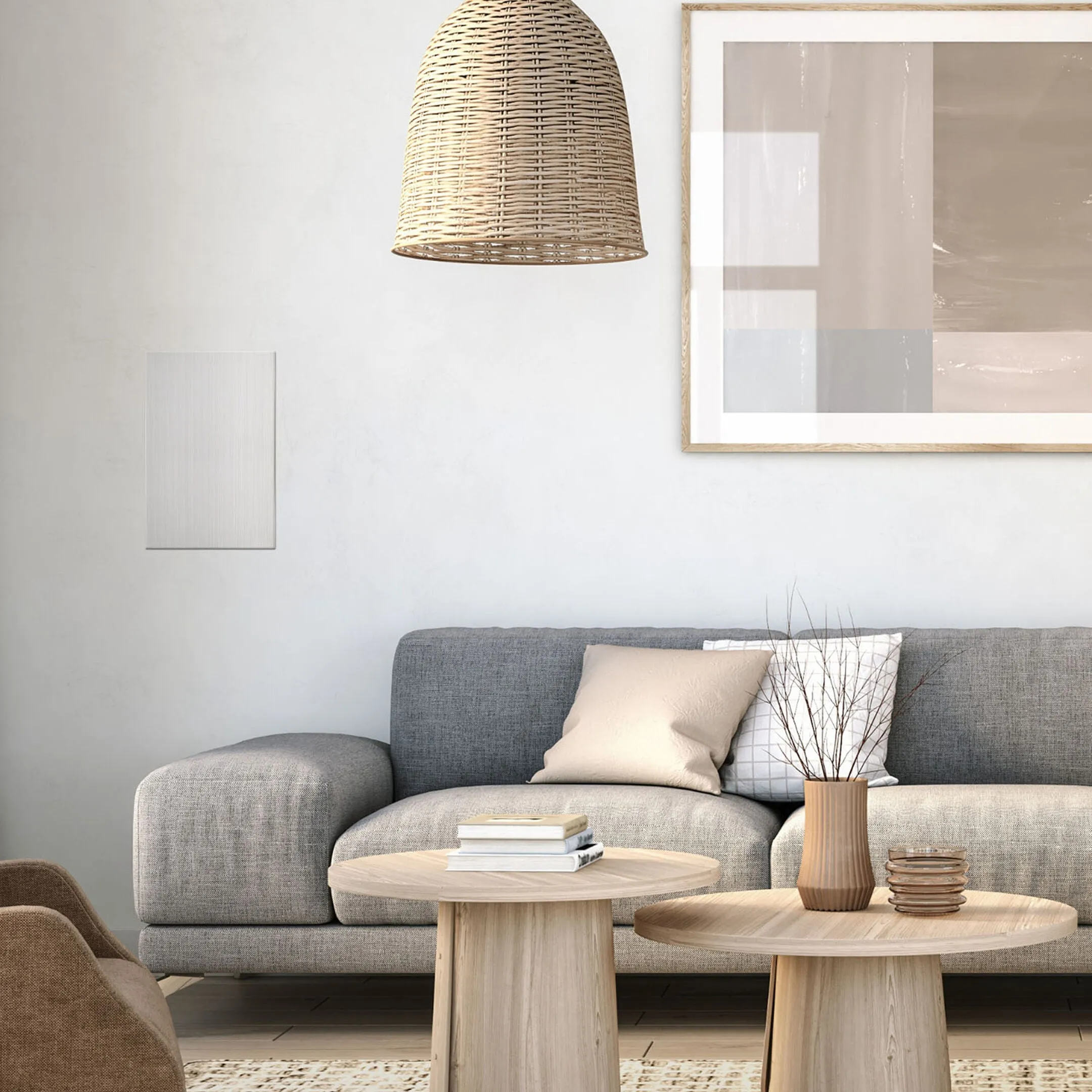

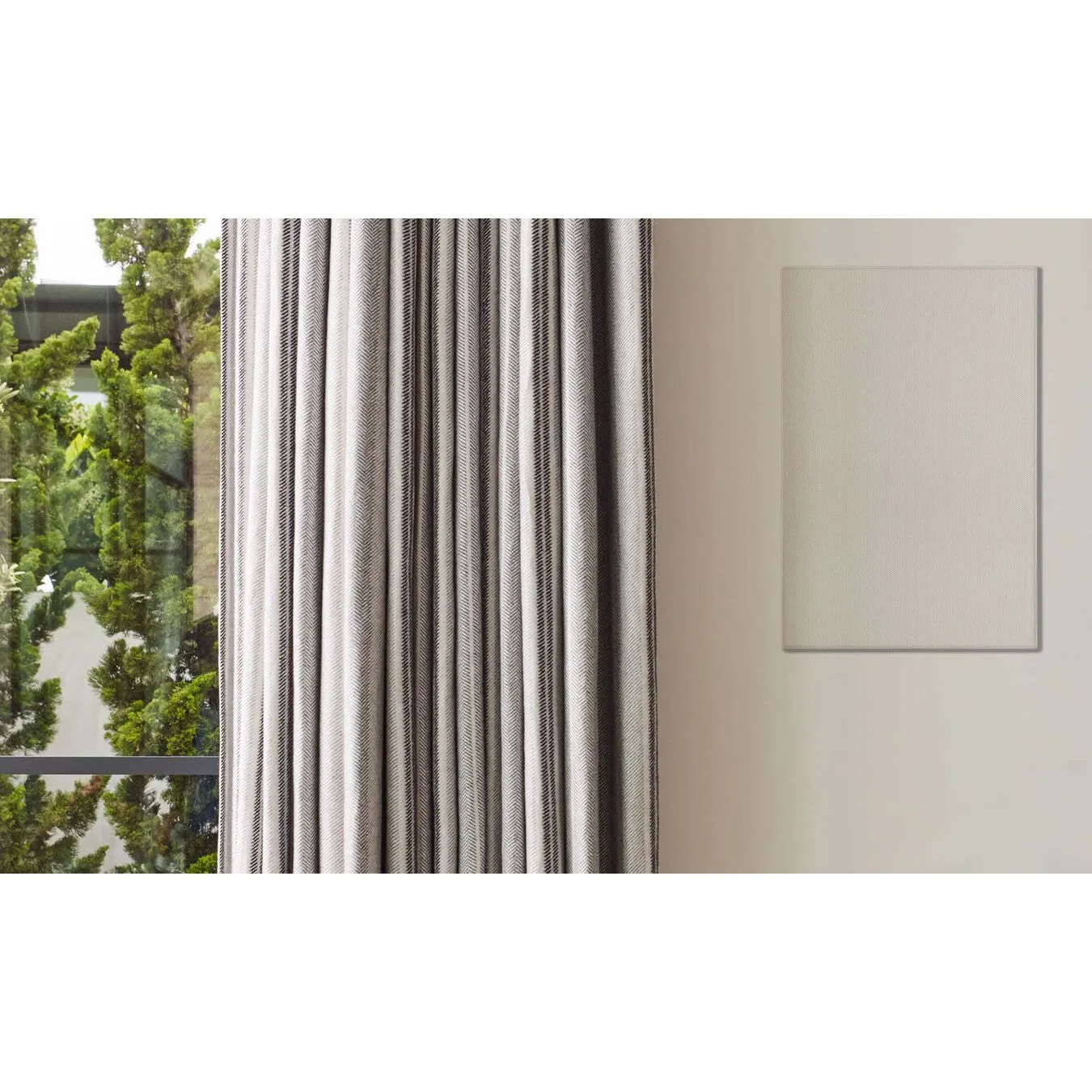

Discreet Designs for the Ultimate Vanishing Act

Integrated frames and baffles; paintable, micro-perforated magnetic grilles; and a flush, border-free design mean speakers fade into the background for a virtually invisible appearance that’s in perfect harmony with your space.

IP55-Rated Construction for robust weather protection

Stunning sound doesn’t have to be limited to indoor spaces. With IP55-rated protection against dust and low-pressure water streams, trust that you can bring premium sound to any space, including high-humidity environments and outdoor areas.

Timbre-Matching for cohesive sound system

With Dymension, fidelity runs in the family: Combine timbre-matched Dymension, Dymension CI, and Mythos speakers and Descend Series subwoofers to design the high-performance home theatre system of your dreams.

Specifications

• Product Dimensions: 10.84 x 15.96 x 3.95 in (275.4 x 405.4 x 100.3 mm)
• Cut- Out Dimensions: 9.61 x 14.73 in (244.2 x 374.2 mm)
• Mounting Depth: 3.66 in (92.9 mm)
• Weight: 6.39 lbs (2.9 kg)
• Colour: White Paintable Grille
• Grille material: Micro-Perforated Magnetic Grille
• Tweeter: 1 in Pivoting Aluminum Oxide Dome Tweeter
• Midrange/Midbass: 8 in Mineral Filled Poly
• Frequency response: 22 Hz–30 kHz (-10dB), 35 Hz–25 kHz (-3dB)
• Nominal impedance: 6Ω
• Sensitivity: 87dB (2.83V/1m)
• Recommended Amplifier Power: 20-120W
• IP Rating (Ingress Protection): IP55
• Warranty: 5 years
• Included accessories: Grille, Literature Pack (QSG/Registration Card/Warranty), Hole Cutting Guide
