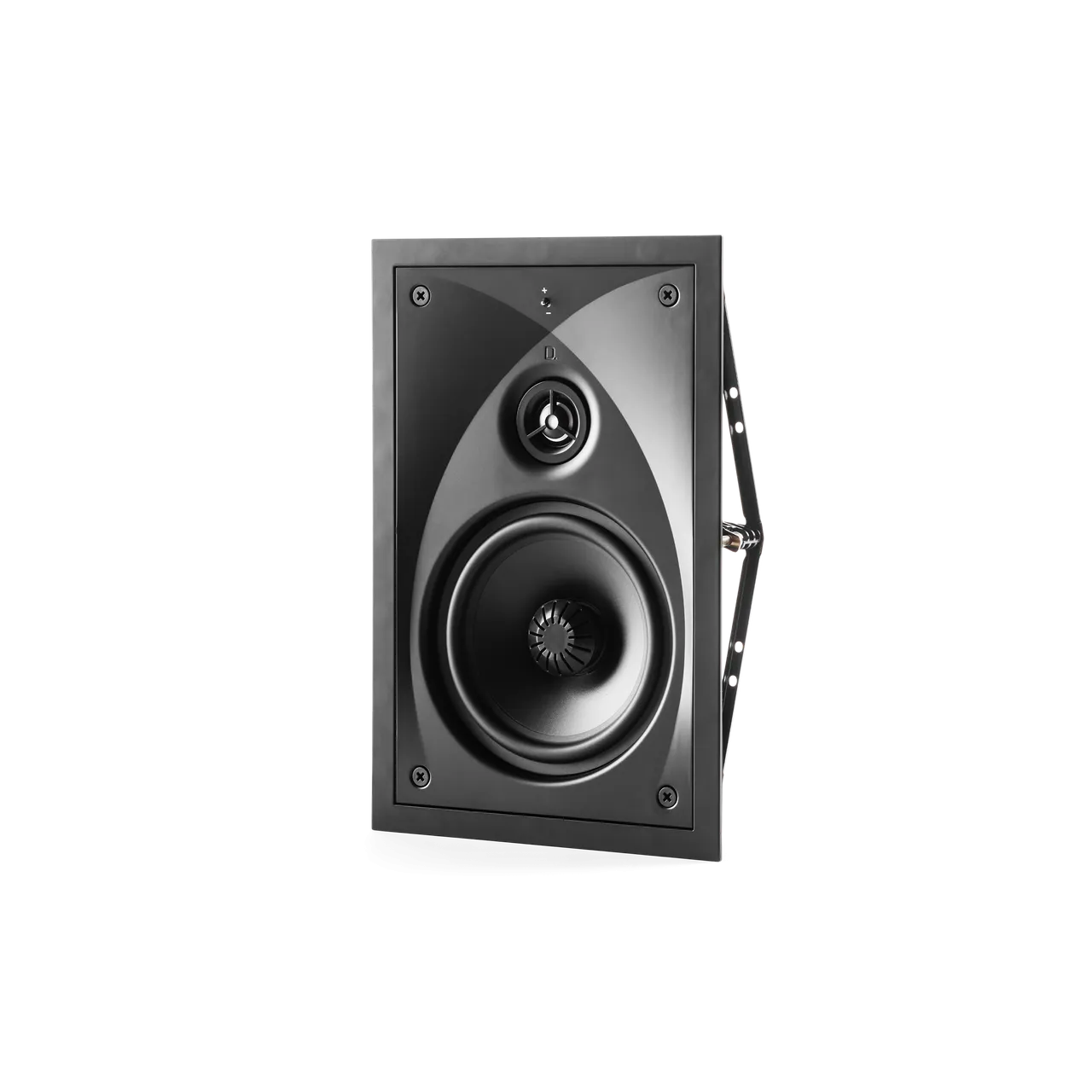

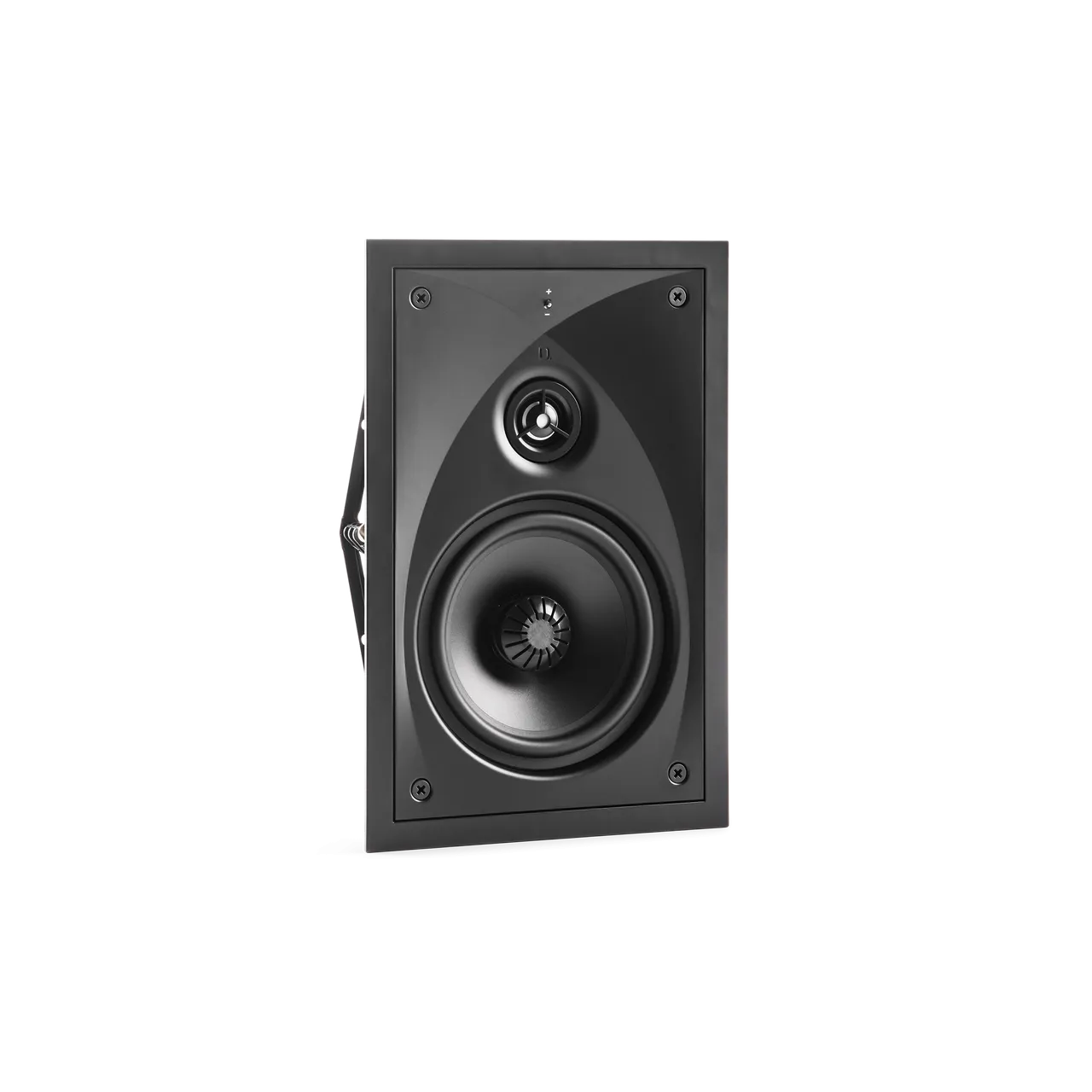

Dymension CI™ DW-65 MAX in-wall speakers deliver precise sound, indoors and out, thanks to premium woofers and tweeters, discreet aesthetics, and robust weather protection.

• 6.5" Mineral-Filled BDSS Woofer with Linear Response Waveguide™
• 1" Pivoting Aluminum Oxide Dome Tweeter
• Toolless Installation
• Flush, Border-Free Design
• Tweeter Attenuation Switch

Rich, Balanced Sound

Effortless Bass and Crystal Clear Highs

Sophisticated Design

Maintain the aesthetics of your space

Seamless Installation -Toolless Installation for fast, easy installs

Install without tools, safely and securely, in minutes. A simple, two-piece system with pivoting “dog” arms installs effortlessly—no tools, no hassles. Pre-construction brackets are available for all Dymension CI models.

Sound for Every Space

Pivoting Aluminium Oxide Dome Tweeter for Superior Imaging Everywhere in the Room

An ultralight, rigid, 1” aluminium oxide dome tweeter produces crisp, distortion-free highs that extend far beyond the range of human hearing. CI MAX Series features a pivoting tweeter on most models allowing for speaker placement in convenient locations while directing sound precisely where it matters most.

Premium BDSS Woofers with Linear Response Waveguide for Robust Mids and Lows and the Ultimate Sweet Spot

Dymension CI MAX’s light, stiff, mineral-filled woofers feature Definitive Technology’s revolutionary Balanced Double Surround System (BDSS™), which improves driver excursion and output, delivering superior punchiness and detail and a more even midrange throughout the room. Our patented Linear Response Waveguide™ extends both on-axis and off-axis frequency dispersion for more natural midrange and precise imaging and an open, airy sound.

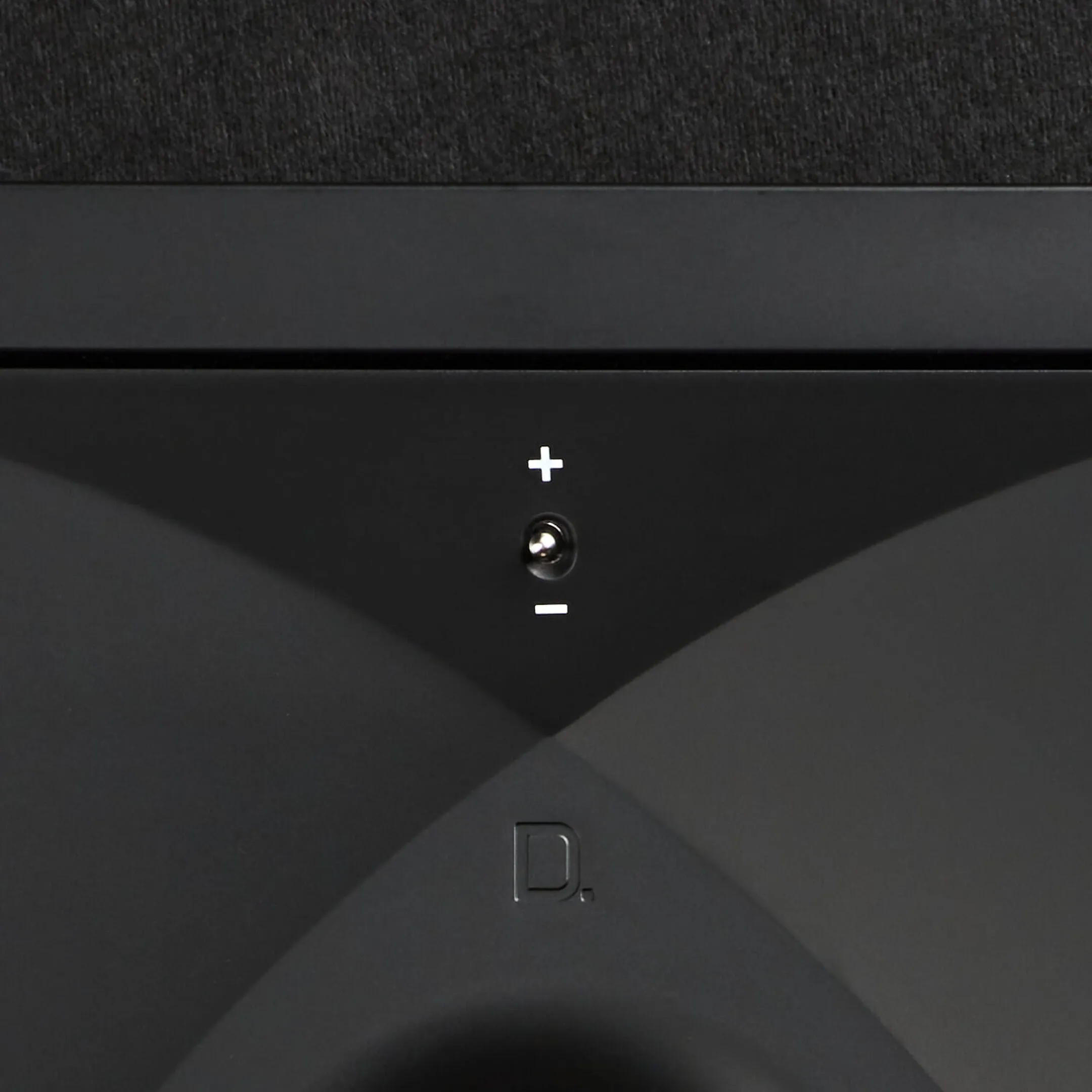

Tweeter Attenuation Switch for Easy Adjustments

A three-position high-frequency attenuation switch (-2 dB, flat, 2 dB) adjusts tweeter response to compensate for acoustic issues like overly bright- or dull-sounding rooms.

Disappearing Design for the Ultimate Vanishing Act

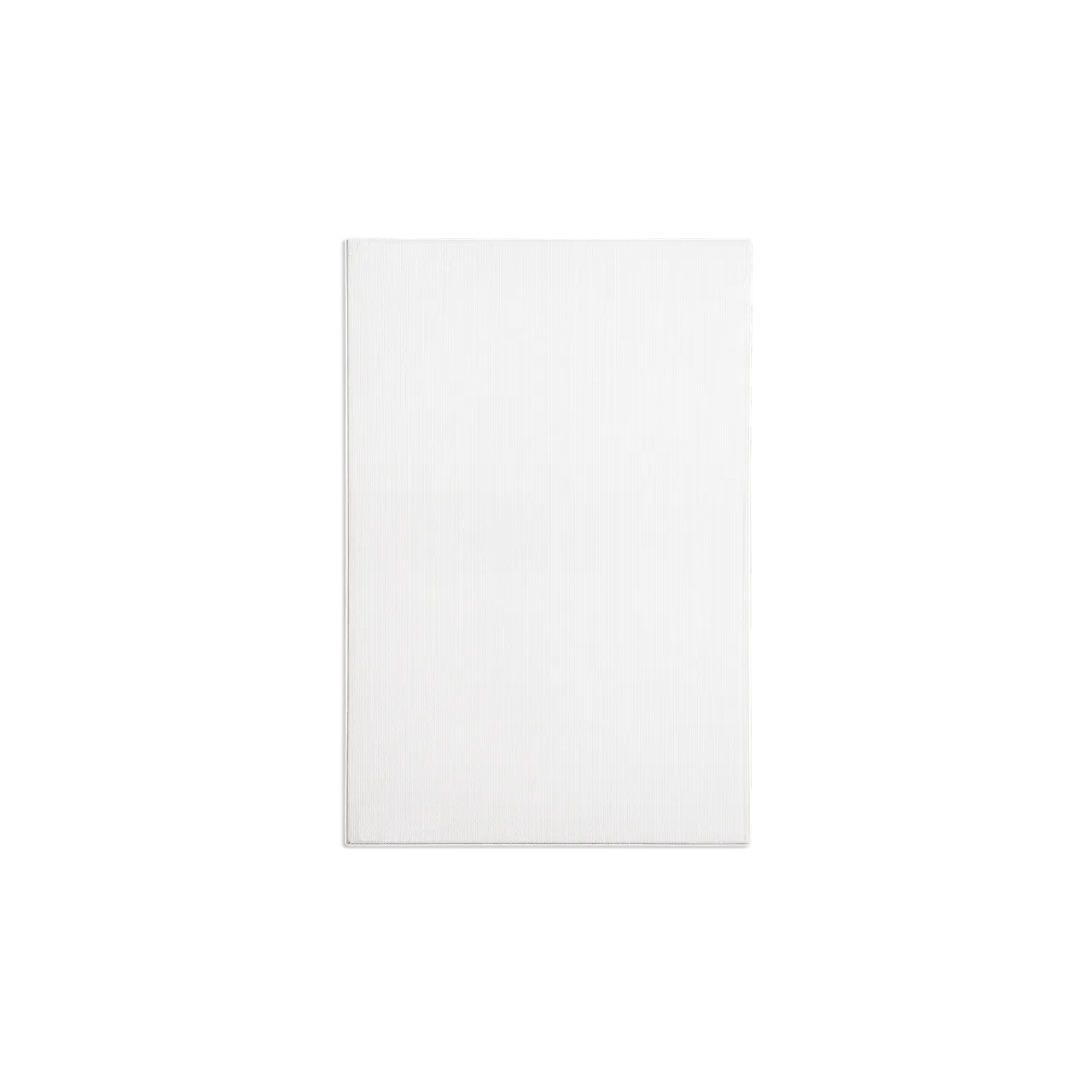

An integrated frame and baffle; paintable micro-perforated magnetic grille; and flush, border-free design mean speakers fade into the background for a virtually invisible appearance that’s in perfect harmony with your space.

IP55-Rated Construction for robust weather protection

Stunning sound doesn’t have to be limited to indoor spaces. With IP55-rated protection against dust and low-pressure water streams, trust that you can bring premium sound to any space, including high-humidity environments and outdoor areas.

Timbre-Matching for cohesive sound system

With Dymension, fidelity runs in the family: Combine timbre-matched Dymension, Dymension CI, and Mythos speakers and Descend Series subwoofers to design the high-performance home theatre system of your dreams.

Specifications

• Product Dimensions: 9.15 x 13.68 x 3.95 in (232.4 x 347.4 x 100.3 mm)
• Cut- Out Dimensions: 7.92 x 12.45 in (201.2 x 316.2 mm)
• Mounting Depth: 3.65 in (92.8 mm)
• Weight: 5.09 lbs (2.31 kg)
• Colour: White Paintable Grille
• Grille material: Micro-Perforated Magnetic Grille
• Tweeter: 1 in Pivoting Aluminum Oxide Dome Tweeter
• Midrange/Midbass: 6.5 in. Mineral Filled Poly BDSS™ with Linear Response Waveguide™
• Frequency response: 34 Hz–30 kHz (-10dB), 56 Hz–25 kHz (-3dB)
• Nominal impedance: 6Ω
• Sensitivity: 85dB (2.83V/1m)
• Recommended Amplifier Power: 20-150W
• IP Rating (Ingress Protection): IP55
• Warranty: 5 years
• Included accessories: Grille, Literature Pack (QSG/Registration Card/Warranty), Hole Cutting Guide
