PRODUCT DETAILS
The PHANTOM H-80 R is the loudspeaker you choose when large, dynamic and well-defined sound really matters. The sound performance is clear, detailed and yet controlled and powerful. As for the soundstage, it will extend into every corner of even larger rooms and home cinemas.
The PHANTOM H-R series:

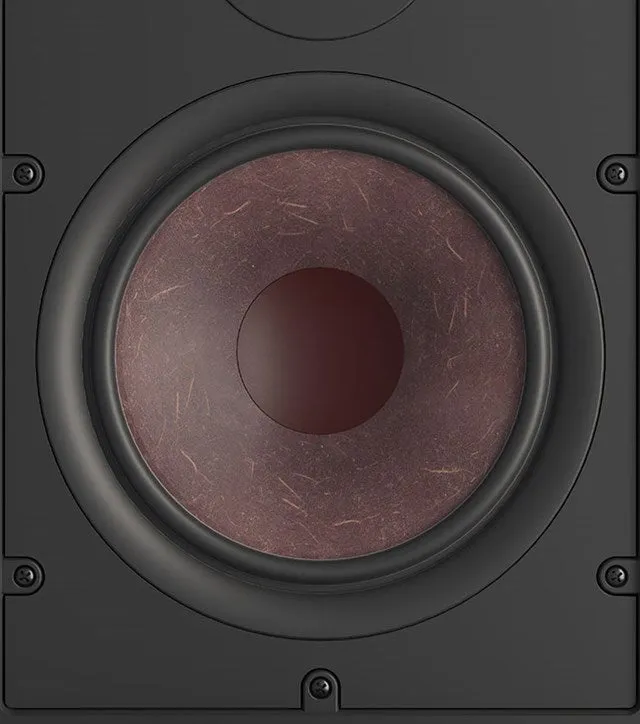

The DALI PHANTOM H-80 R is an in-wall speaker built around traditional loudspeaker technologies. At its centre is the easy to recognize the DALI woofer cone made from a mix of paper pulp and wood fibre. This gives the cone a light, well-behaved, but random structure that helps reproduce even the smallest details in the music.

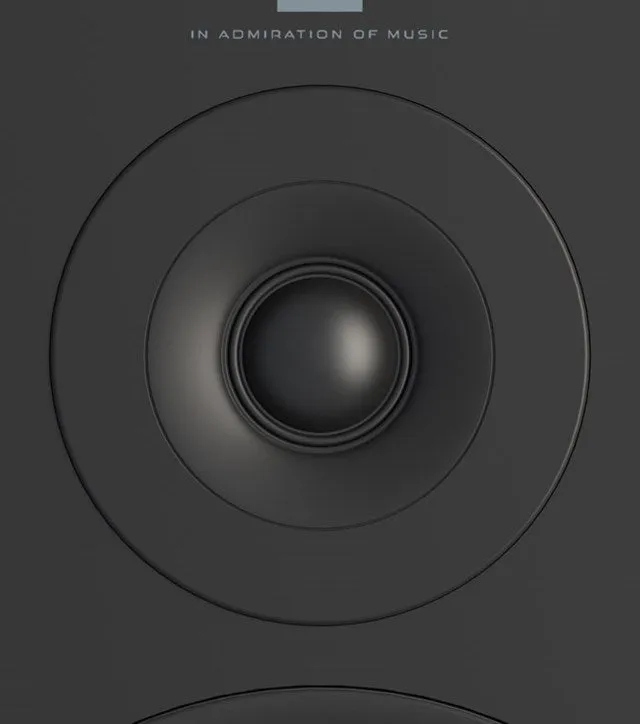

The powerful low-loss magnet system delivers precision and timing to the low frequencies and the ultra-lightweight soft dome tweeter adds great resolution to the high frequencies. Together they blend into a very coherent, highly detailed, clear, and natural soundstage. The PHANTOM H-80 R is a compact, yet big sounding in-wall speaker that will fit perfectly into medium to large rooms or home cinemas.
WIDE DISPERSION
All speakers by DALI are designed around the principle of wide dispersion. This entails an off-axis optimisation of the audio reproduction. The technology is perfect for use in install speakers, since they are always mounted flush against either a wall or ceiling.
TRADITIONAL SPEAKER TECHNOLOGIES
The high-end PHANTOM install speakers are packed with traditional speaker virtues. Not only are the wood fiber cones and ultra-lightweight soft dome tweeters mounted in a classic MDF baffle, the placement of the drivers is just similar to our traditional speakers.
EASY INSTALLATION

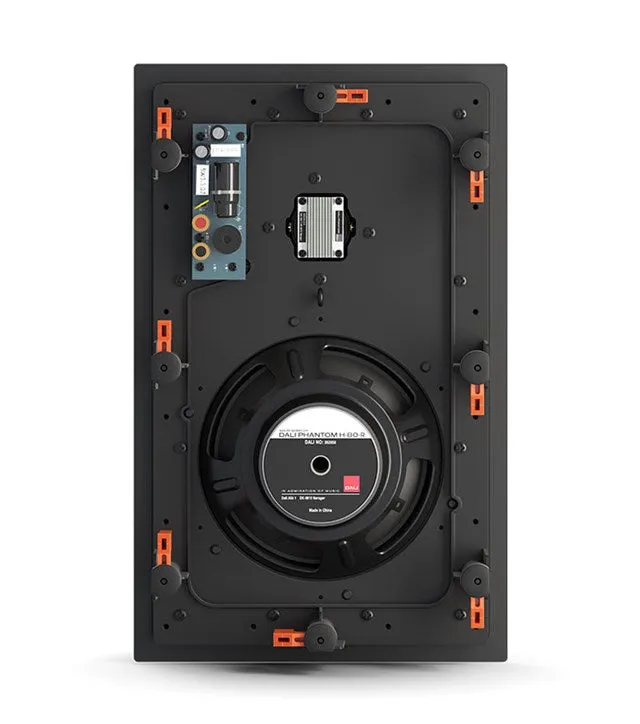

The dogleg mounting system makes the install process an easy one-step action simply by tightning the dedicated screws to swing out the dogleg brackets.
INVISIBLE DESIGN

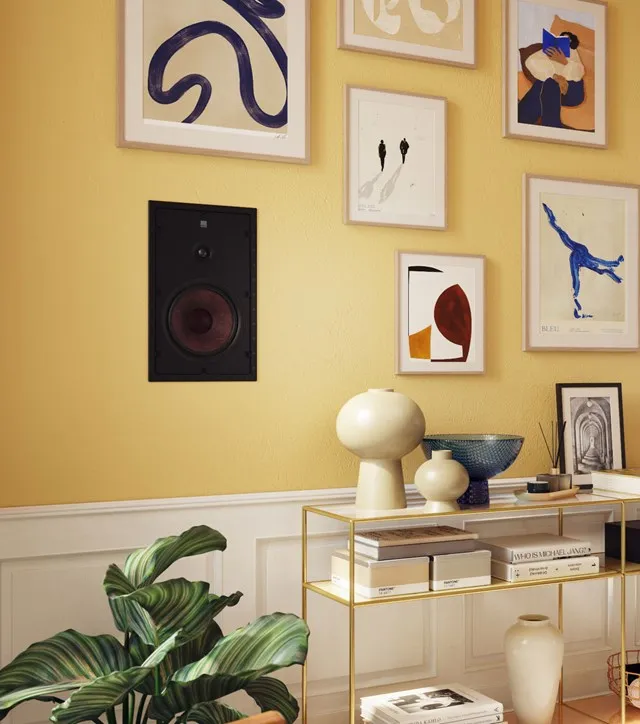

The very thin magnetic front grilles integrates almost seamlessly into any home environment.
| Product series | PHANTOM |
|---|---|
| Frequency Range ( /-3 dB) [Hz] | 46 - 25,000 |
| Sensitivity (2,83 V/1 m) [dB] | 90.0 |
| Nominal Impedance [ohms] | 6 |
| Maximum SPL [dB] | 109 |
| Recommended Amplifier Power [W] | 30 - 200 |
| Crossover Frequency [Hz] | 2,350 |
| High frequency driver, Quantity | 1 x 28 mm |
| High frequency driver, Diaphragm type | Soft Textile Dome |
| Low frequency driver, Quantity | 1 x 8" |
| Low frequency driver, Diaphragm type | Wood Fibre Cone |
| Enclosure type | Open back |
| Connection Input | Single Wire |
| Recommended Placement | In-Wall |
| Dimensions (HxWxD) [mm] | 452 x 284 x 105 |
| Accessories Included | 3mm Allen Key Cut-Out Template Logo Badge Manual |
| Weight [kg] | 3.70 |
| Recommended Volume [litre] | 15 - 100 |
